Why is soak timer actually needed on Optical devices?



We all know that during troubleshooting we look for detected fault, alarms, or performance parameters on the monitoring points and then correlate with other factors to conclude the root cause. Fault detection is the process of determining that a fault exists. Fault detection capabilities are intended to detect all actual and potential hardware and software troubles so that the impact on service is minimized and consistent with the reliability and service objectives.





Now let's talk about what we are intended to discuss here.



In accordance with GR-474-CORE,  a time period known as “soak time” is incorporated in the definition of a signal failure to allow for momentary transmission loss e.g from single transient events, and to protect against false alarms.



For transport entities, the soaking interval is entered when a defect event is detected and is exited only if either the defect persists for the soak time interval and a bona fide failure is declared, or normal transmission returns within the soaking time interval.





Also keep in mind that circuits do not use the soak timer, but ports do.



For example, the time period for DS3 signal failure entry/clearing is 2.5 ± 0.5 seconds and 10 ± 0.5 seconds  (more at  https://mapyourtech.com/entries/general/what-is-the-soak-time-period-to-detect-los-on-a-port-  )







Go Back

Do we still need 50 ms(milliseconds) restoration for running telecom services?



It was always exciting discussing 50ms switching/restoration time perspective for telecom circuits for every engineer who belongs to some part of telecom services including, optical, voice, data, microwave, radio, etc. I was also seeking it since the start of my telecom career, and I believe still somewhere at some point in time, engineers or telecom professionals might be hearing this term and wonder about why (“WHY”) is this? So, I researched over available knowledge pools, and using my experience, I thought of putting it into words to enlighten some of my friends like me.



The 50 ms idea originated from Automatic Protection-based Switching subsystems during early digital transmission systems. It was not actually based on any particular service requirement. The value persists because it is not entirely based on technical considerations which could resolve it, but has roots in historical practices and past capabilities and has been a tool of certain marketing strategies.



Initially, digital transmission systems based on 1:N APS typically required about 20 ms for fault detection10 ms for signaling, and 10 ms for the tail-end transfer relay operationso the specification for APS switching times was reasonably set at 50 ms, allowing a 10 ms margin







For information, early generations of DS1 channel banks (1970s era) also had a Carrier Group Alarm (CGA) threshold of about 230 ms. The CGA is a time threshold for the persistence of any alarm state on the transmission line side (such as loss of signal or frame synch loss) after which all trunk channels would be busied out. But the requirement for 50 ms APS switching stayed in place, mainly because this was still technically quite feasible at no extra cost in the design of APS subsystems.



The apparent sanctity of 50 ms was further entrenched in the 1990s by vendors who promoted only ring-based transport solutions and found it advantageous to insist on 50 ms as the requirement, effectively precluding distributed mesh restoration alternatives under equal consideration start of the SONET era.



As a marketing strategy, the 50 ms issue served as the "mesh killer" for the 1990s as more traditional telcos were bought into this as reference.



On the other hand, there was also real urgency in the early 1990s to deploy some kind of fast automated restoration method relatively immediately. This lead to the quick adoption of ring-based solutions which had only incremental development requirements over 1+1 APS transmission systems. However, once rings were deployed, the effect was to only further reinforce the cultural assumption of 50 ms as the standard. Thus, as sometimes happens in engineering, what was initially a performance capability in one specific context (APS switching time) evolved into a perceived requirement in all other contexts.

But the "50 ms requirement" is undergoing serious challenges to its validity as a ubiquitous requirement, even being referred to as the "50 ms myth" by data-centric entrants to the field who see little actual need for such fast restoration from an IP services standpoint. Faster restoration is by itself always desirable as a goal, but restoration goals must be carefully set in light of corresponding costs that may be paid in terms of limiting the available choices of network architecture. In practice, insistence on "50 ms" means 1+1 dedicated APS or UPSR rings (to follow) are almost the only choices left for the operator to consider. But if something more like 200 ms is allowed, the entire scope of efficient shared-mesh architectures becomes available. So it is an issue of real importance as to whether there are any services that truly require 50 ms.



Sosnosky's original study found no applications that require 50 ms restoration. However, the 50 ms requirement was still being debated in 2001 when Schallenburg, understanding the potential costs involved to his company, undertook a series of experimental trials with varying interruption times and measured various service degradations on voice circuits, SNA, ATM, X.25, SS7, DS1, 56 kb/s data, NTC digital video, SONET OC-12 access services, and OC-48. He tested with controlled-duration outages and found that 200 ms outages would not jeopardize any of these services and that, except for SS7 signaling links, all other services would in fact withstand outages of two to five seconds.

Thus, the supposed requirement for 50 ms restoration seems to be more of a techno-cultural myth than a real requirement—there are quite practical reasons to consider 2 seconds as an alternate goal for network restoration. This avoids the regime of connection and session time-outs and IP/MPLS layer reactions but gives a green light to the full consideration of far more efficient mesh-based survivable architectures.



  A study done by Sosnosky provides a summary of effects, based on a detailed technical analysis of various services and signal types. In this study, outages are classified by their duration and it is presented how with the given different outage time, main effects/characteristics change.





Conclusive Comment



Considering state-of-art technologies evolving overtimes in all aspects of telecommunication fields, switching speed is too fast, even hold-up-timer (HUT) and hold-down-timers or hold-off-timers are playing significant roles that can hold the consequent actions and avoids unavailability of service. Yes, there will definitely be some packet losses in the services which could be visible as some form of errors in the links or may increase latency sometimes but as we know it varies with the nature of services like voice, data, live stream, internet surfing, video buffering, etc. So we can say that in the recent world the networks are quite resistant to brief outages, although it could vary based on the architecture of the network and flow of the services. Even 50ms or 200ms outages would not jeopardize services (data, video, voice) and it will be based on network architecture and routing of services.

Would love to see viewers comment on this and further discussion.

Reference
Mesh-Based Survivable Networks: Options and Strategies for Optical, MPLS, SONET, and ATM Networking By Wayne D. Grover







Go Back

What is the reason behind most of the EDFAs (Erbium Doped Fiber Amplifier) using only 980nm and 1480nm as their pumping wavelengths and not any other wavelengths?

The pump wavelength used is either 980nm or 1480 nm due to the availability of these laser sources.  In the course of the explanation let see the energy level diagrams for the (Erbium) Er3+ ion, the absorption band of Er+, and the pump efficiency.









(a) Energy levels of erbium ions and (b) gain and attenuation spectra.





Excited State Absorption (ESA)

Ground-state absorption (GSA)





There are several states to which the erbium ions can be pumped using sources of different wavelengths, such as those operating at 1480, 980, and 800 nm. However, in practical optical systems, the pump wavelength must provide a high power to achieve a high gain per pump.



The commonly available laser diodes can operate at 800, 980, and 1480 nm, but the pump efficiency can go more than 1 dB/mW with low attenuation depending on the pump frequency.



The only pump wavelength laser sources that can give a high pumping efficiency with lower attenuations are those operating at 980 and 1480 nm.



In practice, the 980 nm pumping source is commonly used due to its high gain coefficient (4 dB/mW). The difference in the effects of these two wavelength sources is mainly caused by the absorption and emission factors.





Vendors Making these laser Pumps





Reference: OPTICAL FIBER COMMUNICATIONS SYSTEMS- Le Nguyen Binh





Go Back

Quick note on Pre-FEC , Post-FEC ,BER and Q relation.

Pre-FEC BER corresponding to Q.

  • BER and Q can be calculated from one another according to the following relationship:

  • Or, in Excel: dBQ = 20*LOG10(-NORMSINV(BER))
  • dBQ = 20Log(Q)

Post-FEC BER/Q

  • Post-FEC BER of <1e-15 essentially means no post-FEC errors
  • This is equivalent to ~18dBQ, which is about as high as can be measured



FEC Limit

  • This is the lowest Q (or highest BER) that can be corrected by the FEC
  • Beyond this post-FEC errors will occur

e.g

 FEC Limit: 8.53dBQ or a BER of 3.8e-3
 FEC Limit: 5.23dBQ or a BER of 3.4e-2 (<97% of bits have to be correct!)



Pre-FEC Calculation eg.





Assume:

219499456 : Bit Errors

0 : Uncorrectable words

6.4577198E-6 : PRE-FEC BER

Assume the Time at this instant of performance was 12:05:04 which means : 304 Seconds since the last time interval.


Assume The FEC settings was : STANDARD FEC so the Rate used for 100 G transponder is : 1.1181 * 10^11

General Formula to calculate PRE_FEC:

PRE_FEC BER =    TotalErrors
              ------------------------------------------

                (secsFromLast * (rate))

TotalErrors =((bitErrorCorrected count + (9 * (uncorrected Words count))



So Substituting the Values

219499456 / (304*1.1181 * 10^11) = 6.4577198E-6






Go Back

Quick note on Physical Coding Sublayer (PCS) error in Optical System

What is PCS ?

The Physical Coding Sublayer (PCS) is a networking protocol sublayer in the  Ethernet standards. This layer resides at the top of the physical layer (PHY) which provides an interface between the Physical Medium Attachment (PMA) sublayer and the media-independent interface (MII). This layer is responsible for coding and decoding data streams flowing to and from the MAC layer , scrambling and descrambling it, block and symbol redistribution, alignment marker insertion and removal, and lane block synchronisation .Currently most of the optical client ports supports PCS lane to enable high data rate .

Where actually PCS layer lies ?



e.g



How to troubleshoot PCS errors issues in Optical Network links?

If you see PCS errors on the interfaces; it may cause the link to flap or you can see errors on the client interfaces of the optical or router ports. PCS block reports signal fail/signal degrade too based on pre-set thresholds.



  • Sometime you may see bit errors or error block in the performance of the interface.Bit errors can also be converted to PCS errors.PCS errors are generally due to physical component degrade or failure  issues like problem in  physical interface mapper, damaged or attenuated fiber, issue on patch panel,ODF or due to faulty or damaged optic pluggables.  The higher rate we go the complexity of the internal mapper/components increases so performance becomes more sensitive to optical path perturberation .
  • PCS errors are also visible on the interfaces if there is some activity involving manual fiber pull ,device reboots ,optics replacement etc.  During link bring-up or bring down or flapping kind of situation, it is expected to see PCS errors increase for a short interval of time; which  is because of the  initial synchronization or skew-deskew process  of the two Ethernet end points. PCS errors are always counted from the incoming direction on the receiving node.
  • The other reasons to see PCS errors could be damaged or bad fiber, faulty optical pluggable (sfp/xfp/cfp etc).
  • Low receive power on the interface can also result in this kind of error so it is always recommended to troubleshoot or investigate on physical fiber as well as physical port on the devices(router/optical client ports).

For PCS lane based modules like SR4,LR4 ,LR10  or multi lane pluggables ,it is recommended to see errors on the lanes of the pluggable. if only few lanes are having issue ,it is better to suspect the connector or the optical XFP/CFP.

Also there is a limit for max difference in receive/transmit power between any two lanes .If the difference is greater than the threshold it may also result in issues.

Max Difference in receive power between any two lanes

100GBASE-LR4  5.5dB
200GBASE-FR4  4.1dB
200GBASE-LR4  4.2dB
400GBASE-FR8  4.1dB
400GBASE-LR8  4.5dB

Max Difference in transmit power between any two lanes

100GBASE-LR4  5dB
200GBASE-FR4  3.6dB
200GBASE-LR4  4 dB
400GBASE-FR8  4dB
400GBASE-LR8  4.5dB

e.g

Consider the case of using an LR4 CFP for the optical transceiver; each of the 4 wavelengths used on the link will be carrying 5 PCS lanes. In the case of 5 of the PCS lanes being in errors this may indicate the errors being specific to that wavelength and so areas of investigation should include the individual transmitters and receivers within the CFP.

If a 10 lane CFP (SR10 or LR10) is being used then each wavelength (in the case of the LR10) or fibre (in the case of the SR10) would each be carrying two PCS lanes. In this case then if two PCS lanes within the same CAUI lane are found to contain errors or defects then as well as investigating the CAUI the two lanes would also be carried on the same wavelength or fibre. In this case once again  the optical components should be investigated at both ends of the link. In the case of an SR10 based link the multi-fibre cable should also be checked as it may be possible that one of the individual fibres has been damaged within the cable.



CAUI -(Chip to) 100Gb/s Attachment Unit Interface

CFP :Centum Form factor Pluggable

Reference:https://testing100g.net/troubleshooting-100g-links-with-pcs-lanes/



Go Back

Understanding Optical Return Loss (ORL) in Optical Fiber system

Optical fiber communication professionals might have heard  about ORL (Optical Return Loss ) during design and operation on an Optical Fiber Network.Intend of this article is to share the information on this topic which could help optical fiber  engineers and professionals understanding the concept and they can utilize this knowledge to understand a network in a better way.



In this article we will discuss

-What is ORL?

-What are the major sources of ORL ?

-What are the implications of ORL?

-How to test and rectify ORL?

-Methods to help improve ORL.

-Standards and references


What is Optical Return Loss (ORL)?

Let me share few definitions so that it will be easy for every stage of engineers ;it could be student, beginner, professional or expert.

         1).  When light passes through an optical component most of it travels in the intended direction, but some light is reflected or scattered. In many applications these reflections are unwanted, because they can affect the emission characteristics of any laser in the system. In such applications, it is important to measure the reflections for the components of the system. The Return Loss is defined as the light reflected back into the input path. It is caused by scattering and reflection from optical surfaces like mirrors, lenses, and connectors or from defects, such as cracks and scratches. The backreflection is equal to the return loss with a negative quantity.



          2).  ORL is  defined  as the ratio (in dB) of the optical power (Pinc) traveling downstream at a system interface to the optical power reflected back upstream to the same interface.

This includes the reflected power contributions from all system components downstream from the interface.



 To clarify :



Reflectance (dB) = P reflected (dBm) – P incident(dBm)



A discrete reflection will always be a negative quantity as the reflected power cannot be greater than the incident power.



By convention ORL is defined as:



ORL(dB) = P incident (dBm) – P reflected (dBm)



This means that ORL will always be a positive number.The fact that we want all power to move forward and none to be reflected means that the higher the positive number, the better.







            3).  The reflection factor for a component is a measure of how much light the component reflects. It is a ratio of the power reflected by the device to the power incident on the  device. More normally we talk about the return loss of a component. The return loss has units of dB. Return loss is given by:



Return Loss(dB) = –10log(Reflection Factor) (dB)

ORL(dB) = P incident (dBm) – P reflected (dBm)



               4).  Optical return loss is the ratio of the output power of the light source to the total amount of back-reflected power

(reflections and scattering). It is defined as a positive quantity.


PT: Output power of the light source
PAPC: Back-reflected power of APC connector

PPC: Back-reflected power of PC connector

PBS: Backscattered power of fiber

PR: Total amount of back-reflected power



ORL is measured in dB and is a positive value.Reflectance (dB) is the ratio of reflected power to incident power due to a single interface. It is defined as a negative quantity

The higher the number, the smaller the reflection - yielding the desired result.










What are the major sources of ORL ?

System components such as

  • connectors,
  • mechanical splices,
  • attenuators,
  • patch cords
  • glass/air terminations

All create a change in index of refraction as seen by an optical signal. The components are reflective in nature and can contribute to system ORL.

The fiber optic cable itself creates backscatter as light propagates through it.  The amount of reflected power due to backscatter cannot be eliminated but is magnitudes smaller than the power from discrete reflections



Sources of loss include reflections and scattering along the fiber network. A typical Return Loss value for an Angled Physical Contact (APC) connector is about -55dB, while the RL from an open flat polish to air is typically about -14dB. High RL is a large concern in high bitrate digital or analog single mode systems and is also an indication of a potential failure point, or compromise, in any optical network.








What are the implications of ORL?



The main effects of back-reflection  due to ORL include the following:



  • Less light is transmitted from the transmitter.
  • Increase in light source interference
  • Increasing the BER in digital transmission systems
  • Multi path distortion can also occur.
  • Reducing the OSNR in  transmission
  • Reflections can distort the optical signal as reflections travel back and forth between reflective components.
  • Strong fluctuations in the laser output power.
  • Increase in transmitter noise.
  • Changes central wavelength and output power.
  • Permanent damage to the laser.

How does reflected power affect laser stability ?

Reflected light can provide unwanted feedback to the laser cavity which will effect:

  • Frequency Modulation Response changes
  • Relative Intensity Noise (RIN)
  • Optical frequency variations
  • Laser line-width variations

Reflection induced degradation increases with system bit-rate !The end result is higher bit error rates (BER)






How to test  ORL?



The measurement of ORL is becoming more important in the characterization of optical networks as the use of wavelength-division multiplexing increases. These systems use lasers that have a lower tolerance for ORL, and introduce elements into the network that are located in close proximity to the laser



The two major test methods:

   Optical Continuous Wave Reflectometry (OCWR)

            A laser source and a power meter, using the same test port, are connected to the fiber under test.

  Optical Time Domain Reflectometry (OTDR)

          The OTDR is able to measure not only the total ORL of the link but also section ORL.





To measure the ORL of a fiber span, an optical continuous wave reflectometer (OCWR) is used. The OCWR is an instrument designed to specifically measure system  and component ORL  reflectance. The OCWR launches a stable, continuous wave signal into the optical fiber and measures the strength of the time-integrated return signal. The ORL meter will return a single negative value which is the total reflectance from all reflective components seen from the point of test.  On fiber spans with multiple reflective components, discrete reflectance values cannot be determined unless component isolation is performed. The measured reflectance value is a directional value so tests should be performed on both ends of a fiber span.



The ORL reference measures background reflection of the fiber under test.  The reference procedure is performed each time a new test setup is required.A mandrel wrap is applied to the fiber test jumper before the point of measurement to isolate and attenuate any reflectance generators. The glass to air interface on the test connector end will be isolated from the OCWR.  The ORL zero function on the OCWR provides storage of the background reflectance level to provide the total optical return loss of the fiber test jumper. Once the mandrel wrap is taken out, the displayed ORL value represents the total ORL of the system from the point of termination.







































OTDR method is explained at https://mapyourtech.com/entries/general/otdr-optical-time-domain-reflectomer-some-know-how



Typical OTDR report snapshot for reference:-








Methods to help improve ORL are as follows:

  1. Use ultra polish connectors that have low reflectance such as UPC type. APC type connectors have even better reflectance values but are not compatible with other non-APC connectors. Connection to a non-APC connector can damage the APC connector.

  2. Use fusion splices instead of mechanical connectors or mechanical splices where possible.

  3. Re-do fusion splices that are shown to have reflectance. A good fusion splice should have no reflectance.

  4. Install optical isolators at the laser to reduce back reflectance.



Typical Reflectance for few connectors:-



     PC connecters: -30dB to –40 dB

    UPC connectors: -40dB to –50dB

    APC  connectors: -60dB

    Fiber to air interface on a PC connector: -14.7 dB

    Rayleigh backscatter for telecom fiber:  -70 dB/meter



The angle reduces the back-reflection of the connection.

Typical good ORL measurements range from 30-35 dB. Read more at http://mapyourtech.com/entries/general/why-it-is-good-to-have-orl-%3E30db-for-general-fiber-links-






Standards and references



 -Telcordia document GR-1312

R7-79 [361] The discrete reflectance seen from any ONE optical port shall be less than -27 dB.

O7-80 [362] The discrete reflectance seen from any ONE optical port should be less than –40dB.



-Telcordia Document GR-2918

R7-38 [35] The individual channel Optical Return Loss, ORL as defined above, shall be 24dB or more for all wavelengths used in the DWDM system.



All equipment and component manufactures are required to design their systems  to meet reflectance specifications set out by the ITU-T which are adopted by bodies such as Telcordia (formerly Bellcore).Their specifications are intended to minimize system degradation due to reflections and they propose:

1)Enforce reflectance requirements on individual components in a fiber span.

  R7-79 and O7-80 relate to system components.

  Taken from GR-1312, Issue 3, April 1999

  Generic Requirements for OFAs and Proprietary DWDM systems.



2)Ensure system performance to have a tolerance to specified reflection values.

  R7-38[35] relates to system ORL.

  Taken from GR-2918-CORE, Issue 4, December 1999





Note :This article is sourced from multiple informations available on internet and books.













Go Back

Automation in Optical Networking:If you are reading this you can do this !!!





Automation in Optical Networking

If you are reading this you can do this!!!



Google , Stackoverflow and your little efforts will do it.No worries!!!



This article is not for professional automation engineer but for the enthusiastic professionals who just want to start but  need some guidance to do .



This article is purely  written on the basis of my personal experience through out my career and the intention involved  is to help my friend and folks in understanding the basics and get a glimpse of automation in networking world , so that they can feel motivated and don't get scared with jargons used for automations.



In my terms:

***Automation is not replacing jobs but enabling you to live life more efficiently and with freedom.It is just an act of kindness by technology to give back to the its users and the creators.***





 The scale with which networking communication devices and its usage is  increasing, we need lot of network bandwidth and automation in place to operate, configure, predict  and manage it.Also to have a more robust  ,scalable and reliable network we need agnostic and low latency automations that can help grow the network .





Why automation is needed? Out of 1 million reasons few are as:-

  • It will make your life simpler and cheerful from monotonous and boring pieces of job.
  • It will give you time to think something more creative .
  • It will give you more flexibility as automation can be enabled or operable from remote places.
  • You can spend more time with your loved ones .
  • It can give you sense of security and confidence.
  • It can lead you to be a successful entrepreneurship  .
  • It improves efficiency and reduces errors that can be made by human.



What are the things you can automate? Out of 1 billion reasons few are as:-

  • Everything that you do is sooner or later can be potentially automated.
  • Device logins and configurations can be automated.
  • Metrics polling can be automated to fetch some values from device.
  • Network Management can be customised or scaled.
  • Encryption key rotation can be automated.
  • Capacity monitoring , planning or network design could be automated.
  • Fault Alarming can be automated.
  • Link routing and restoration can be automated.
  • Network self healing and fault remediation could be achieved.
  • Reporting and metrics evaluation could be achieved.
  • Multiple cronjobs could be done and automated.
  • Network discovery could be automated.
  • Regression steps can be automated.
  • On weekends, device/feature runs based testing tasks can be automated.



*This is just an idea that whatever you are doing in your routine job being and network engineer, almost everything can be automated.





Now the most important question: WHAT YOU NEED TO DO?



*THINK THAT YOU CAN DO IT.

We are blessed to have all the resources that we need to learn and groom ourself at this point of time which are available free of cost. So, even if you don’t know how to start and you have never done or written any automation till now in your career still you can do with just a believe that “YOU CAN DO IT”.



*RECALL THE DAYS WHEN YOU LEARED TO EARNED

WE  all have studied at some point of time from books ,newspapers, magazines ,videos etc and have achieved some benchmark in life.So at this point of time too with just a small efforts you can learn and enhance your skill using few of the greatest tools that are available free of cost which I personally recommend are:-

  • GOOGLE  : The best piece of technology platform  that a human kind have .(will recommend first to search “how to search in google search in a best way”
  • Stackoverflow  : Best spot to shadow programmers and learn new things.
  • w3schools.com  : Online school with playground to play.
  • Booksc  : The heaven for book lovers .free to download.





*ANY LANGUAGE WILL HELP BUT CHOOSE LATEST AND IN DEMAND



Automation  just needs an idea—>Steps to do it ——>ALGORITHM——> and any automation language will do it.



Never think that Automation is something which is so big that you can do it but always look for the simplest thing which you can automate and that’s the best way to start writing any automation.AUTOMATION is collection of SCRIPTS,TOOLS,PACKAGES,LIBRARIES organised in a efficient manner to collaborate and give some user consumable or readable data.

  • AUTOMATION LANGUAGES/TOOLS THAT CAN HELP NETWORK ENGINEERS
  • Python
  • TCL/Perl
  • HTML/JINJA/ANSIBLE
  • JAVA
  • NETCONF/YAML
  • SNMP/TL1/TELEMETRY /CLI
  • LINUX
  • TELNET/SSH
  • FTP/SFTP/WINSCP
  • KIBANA/GRFANA/DATABASE
  • PYCHARM/VISUAL STUDIO/SUBLIME TEXT/NOTEPAD++

Note: Do search in internet the terms if you are not aware so that you can learn more.



*AUTOMATION  INFOGRAPHICS





Image credit:https://netyce.com/blog/lets-talk-about-network-automation-its-misunderstood/





Requesting every professional to help each other because this is the best way to evolve




Go Back

OSNR: What does this mean;Why do we need and How to take care of it?

Signal to Noise Ration (SNR)  is not an unknown terminology for Engineers and Tech professionals who are dealing with Digital or Analog form of Communication.Here we will  explore the aspect of SNR in Optical Fiber Communication  space known as Optical Signal to Noise Ratio(OSNR).



Warning! Keep patience while scrolling down to read as this article may seem long as this is important topic.Whole content is collected from free available trusted sources and can be downloaded or shared.Copy/Paste mistakes may be observed and can be corrected once notified.Content may seem non-structured but there is content for everyone from beginner to professional so reader can absorb what he wants.



Bingo! Let's start it.





Some handy definition of OSNR to pick :-

  • OSNR [dB] is the measure of the ratio of signal power to noise power in an optical channel .



  • OSNR is the short form of Optical Signal to Noise Ratio. It is key parameter to estimate performance of Optical Networks. It helps in BER calculation of Optical System.
  • OSNR is important because it suggests a degree of impairment when the optical signal is carried by an optical transmission system that includes optical amplifiers.
  • If we know the OSNR and the bandwidths, we can find Q and the BER
  • It can be seen as the QoS at the physical layer of optical networks. OSNR is directly related to bit-error rate, which will lead to packet losses seen by higher layers.
  • OSNR indirectly reflects BER and can provide a warning of potential BER deterioration.
  • OSNR has long been recognised as a key performance indicator for amplified high-speed transmission networks to ensure network performance and reliability and it is related to many design parameter such as number or repeater/amplifiers ,reach ,available modulation formats etc.

Now let's explore it in more detail:-



Optical signal-to-noise ratio (OSNR) is used to quantify the degree of optical noise interference on optical signals. It is the ratio of service signal power to noise power within a valid bandwidth.When the signal is amplified by the optical amplifier (OA), like EDFA, its optical signal to noise ratio (OSNR) is reduced, and this is the primary reason to have limited number of OAs in a network.

The OSNR values that matter the most are at the receiver, because a low OSNR value means that the receiver will probably not detect  or recover the signal. The OSNR limit is one of the key parameters that determine how far a wavelength can travel prior to regeneration.

OSNR serves as a benchmark indicator for the assessment of performance of optical transmission systems. DWDM networks need to operate above their OSNR limit to ensure error – free operation. There exists a direct relationship between OSNR and bit error rate (BER), where BER is the ultimate value to measure the quality of a transmission.



The value of OSNRout that is needed to meet the required system BER depends on many factors such as the bit rate, whether and what type of FEC is employed, the magnitude of any crosstalk or non-linear penalties in the DWDM line segments, etc.Below picture highlights OSNR as one of the important parameter  in a DWDM link.



Optical amplifiers such as erbium-doped fiber amplifiers (EDFAs) are normally employed in optical networks to compensate for the transmission losses over long distances. However, besides providing optical gain, EDFAs also add unwanted amplified spontaneous emission (ASE) noise into the optical signal. Furthermore, the cascading of EDFAs results in accumulation of ASE noise. ASE noise is typically quantified by OSNR and is one of the most important parameters to be monitored in optical networks since the BER is directly related to the signal OSNR Furthermore, it also plays a pivotal role in fault diagnosis and as a measure of general health of links in an optical network.



















OSNR may change due to signal power changes or higher repeater noise levels due to aging.



Now lets read the Legacy method to measure it:-



The traditional method to measure OSNR is defined in the IEC 61280-2-9 standard and is known as the interpolation or out-of-band method, as shown in Figure-1 below



OSNR for a Point-to-Point Link



 NFstage is the noise figure of the stage, h is Plank's constant (6.6260 × 10-34), ν is the optical frequency 193 THz, and Δf is the bandwidth that measures the NF (it is usually 0.1 nm).



OSNR =158.9+ Pin.dBm NF10log(Br )

where OSNRdB = optical signal to noise ratio of the optical amplifier, dB

Pin.dBm = average amplifier input signal power (DWDM systems use single-channel power), dBm

NF = amplifier noise figure, dB

h = Planck's constant 6.626069 1034, Js

f = signal center frequency, Hz

Br = optical measurement bandwidth RBW, Hz

If the measurement optical bandwidth can be assumed to be 0.1 nm (12.48 GHz),

OSNR = 58 + Pin.dBm NF

OSNRF.dB =158.9+Psource.dBm −Γ−NF10log(Br)10logN

where OSNRF.dB = final OSNR seen at the receiver, dB
P
source.dBm = average source signal power into the first span

(DWDM systems use single-channel power), dBm NF = amplifier noise figure, the same for all EDFAs, dB Br = optical measurement bandwidth, Hz
N
= number of amplifiers in the fiber link excluding the booster
Γ = span loss, the same for all spans, dB



Above equation provides the actual mathematical calculation of OSNR. This calculation method has quite a few approximations in which we can still find the system OSNR to a great degree of accuracy. In a multichannel WDM system, the design should consider OSNR for the worst channel (the one that has the worst impairment). The worst channel is generally the first or last channel in the spectrum.

we can see that the EDFA gain factor G is not considered. That is because OSNR is a ratio, and the gain acts equally on signal and noise, canceling the gain factor in the numerator and denominator. In other words, although EDFAs alleviate the upper bound on transmission length due to attenuation, by cascading EDFAs in a series, the OSNR is continuously degraded with transmission length and ASE (from EDFAs). This degradation can be lessened somewhat by distributed Raman amplifiers (DRAs).



Now see what bliss Raman Amplifier can do here:-



Addition of Raman and OSNR change:-







As we can see from above equation the factor GRA in the numerator actually enhances the OSNR of the system.(stages) could be considered as EDFA hops here.



OSNR-based design essentially means whether the OSNR at the final stage (at the receiver) is in conformity with the OSNR that is desired to achieve the required BER. This also guarantees the BER requirement that is essential for generating revenue.







This method works well for networks up to 10G, without any Reconfigurable Optical Add-Drop Multiplexers (ROADM).



But traditional way of measurement don’t work anymore in High Speed Communications:-



However, IEC 61280-2-9 isn’t feasible for 100G+ signals as well as ROADM networks.

Figure 2 illustrates 100G channels spaced 50GHz apart, which is a common spacing in modern submarine (and terrestrial) networks. Polarization-Multiplexed (Pol-Mux) 100G+ signals are typically wider (require more optical spectrum) than legacy On-Off-Keyed (OOK) 10G signals, meaning they could overlap with neighboring channels. Accordingly, the midpoint between channels no longer consists only of noise, but rather of signal plus noise. Thus, the IEC method applied to 100G+ Pol-Mux signals will therefore lead to an overestimation of noise and inaccurate measurement date leading to incorrect decisions.




Figure 2IEC 61280-2-9 Method Fails with Dense Pol-Mux 100G+ signals

Figure 3 illustrates a 100G signal that has gone through a ROADM, with the green area showing the channel bandwidth. Given filters inside a ROADM, the noise at the midpoint between channels will be carved (or filtered), leading to an underestimation of the noise level, if the IEC 61280-2-9 method is used, meaning this method is not feasible in ROADM-enabled coherent submarine networks.


Figure 3IEC 61280-2-9 Method Fails in ROADM 100G+ Pol-Mux Networks



To address the issues described in Figures 2 and 3, in-band OSNR was introduced around 2009 to support OSNR measurements of 10G signals in ROADM networks and 40G OOK signals. However, this method can’t be applied to coherent, Pol-Mux 100G+ signals, because of technical reasons beyond the scope of this blog. Consequently, Pol-Mux OSNR techniques have been introduced to support 100G+ signals, which is the topic of the latest standards.



Appropriate standards for Pol-Mux OSNR measurements?



There are two standards providing relevant guidelines for OSNR measurements of Pol-Mux signals. They are the China Communications Standards Association (CCSA) YD/T 2147-2010 standard and the IEC 61282-12 standards, which was recently introduced in February 2016. Both standards provide a future-proof definition of OSNR, which can be applied to any type of signal, at any data rate, including super-channels and flexible-grid signals. Specifically, the IEC-61282-12 standard specifies that:



where:

  • s(λ) is the time-averaged signal spectral power density, not including ASE, expressed in W/nm
  • ρ(λ) is the ASE spectral power density, independent of polarization, expressed in W/nm
  • Br is the reference bandwidth expressed in nm (usually 0.1nm if not otherwise stated)
  • and the integration range in nm from λ1to λ2is chosen to include the total signal spectrum
  •

The only drawback of these two standards is that a careful application of their formulae requires turning off channels, to access the Amplified Spontaneous Emission (ASE) noise floor, which isn’t possible on an in-service lest we upset end-users! Fortunately, in-service Pol-Mux OSNR methods have been introduced.

below table summarizes the correct OSNR method for each type of signal.



Data Rate

ROADM Present?

OSNR Method

Works on in-service network?

≤10G signals

No

IEC 61280-2-9

Yes

≤10G signals

Yes

In-band OSNR

Yes

Non-coherent 40G signals

Yes or No

In-band OSNR

Yes

Coherent 100G+ signals

Yes or No

Pol-Mux OSNR (IEC and CCSA standards)

No

Coherent 100G+ Signals

Yes or No

In-Service Pol-Mux OSNR

Yes



Table 1: OSNR Measurement Methods for Various Signal Types



Using the wrong OSNR measurement method for a given signal can have a significant impact on results, as it can lead to errors ranging from a few dBs up to 10dB, potentially leading to future outages. Using the proper method guarantees the right OSNR measurements are achieved leading to accurate network modeling, link simulation, and maintenance of ongoing submarine cable network performance.





Summarizing the importance of OSNR and its proper measurement method?


Some of the benefits of OSNR testing, including avoiding network outages, optimizing troubleshooting times, and ensuring optimal terrestrial and submarine cable performance. OSNR will become even more critical at data rates beyond 100G, because of the more stringent OSNR thresholds that will be required. Several OSNR methods have been introduced over the years, so the key takeaway is that the right OSNR measurement method must be used on a specific signal type to get accurate results.







Introduction to OSNR for high speed communication



The OSNR is the signal-to-noise ratio (SNR) measured in a reference optical bandwidth, where frequently a bandwidth Bref of 12.5 GHz is used corresponding to 0.1 nm wavelength. The OSNR relates to the Es N0 and Eb N0 as



where Bref is the previously introduced reference bandwidth, RS corresponds to the symbol rate of the transmission, r is the aforementioned rate of the code with r = kn, and qcorresponds to the number of bits mapped to each modulation symbol.

The use of high-order modulation formats requires a higher optical signal-to-noise ratio (OSNR), which may result in a significantly reduced achievable transmission distance .Following diagram shows the OSNR estimation stage for High Speed Optical Communication.



Lets talk about OSNR Penalty now:-

OSNR penalty is obtained from the BER curves and determined at a particular BER. A value of the OSNR penalty is obtained by comparing the values of OSNR before and after  the change of the parameters, which are under test, as given by





Gripple = penalty due to DWDM amplifier gain ripples

OSNRpenalties = various transmission penalties due to CD, PMD, PDL, etc. (note these penalties maybe different for 100G vs. 400G)





Calculation of Q-Factor from OSNR

The OSNR is the most important parameter that is associated with a given optical signal. It is a measurable (practical) quantity for a given network, and it can be calculated from the given system parameters. The following sections show you how to calculate OSNR. This section discusses the relationship of OSNR to the Q-factor.

The logarithmic value of Q (in dB) is related to the OSNR

In the equation, B0 is the optical bandwidth of the end device (photodetector) and Bc is the electrical bandwidth of the receiver filter.

Q is somewhat proportional to the OSNR





BER FORMULAS FOR THE MOST COMMON QAM SYSTEMS

Gray coding is assumed for all formats. For PM-BPSK the exact formula is:

For PM-QPSK the exact formula is:

For PM-16QAM and PM-64QAM, respectively, the following formulas are approx- imate, but their accuracy is better than ±0.05 dB of OSNRNL over the range

10−1– 10−4:



EDFA Noise – Why Input Power Matters











Optical signal suffers more than only attenuation. In amplitude, spectrally, temporally signal interaction with light- matter, light- light, light-matter-light leads to other signal disturbances

such as :-

  •  Power reduction
  •  Dispersion
  •  Polarization
  • Unbalanced amplification

Thus leading to random noise, which causes misalignments, jitter and other disturbances resulting in erroneous bits, the rate of which is known as bit-error-rate





Because of all possible influences outlined bits transmitted by source and bits arriving at the receiver may not have the same value. In actuality a threshold value is set at the receiver, above the threshold refers to a logic “one” and below threshold refers to a logic “zero”.



In order to measure BER in photonic regime, the optical signal is converted to electrical signal.

Example: Assuming a confidence level of 99%, BER threshold set at 10-10 and a bit rate of 2.5 Gb/s the required number n is 6.64 x 1010



Given the OSNR, the empirical formula to calculate BER for single fiber is

Log10 (BER) = 10.7-1.45 (OSNR)







In an experimental environment where factors such as loss, dispersion, and non-linear effects are excluded, if the OSNR is less than the specified threshold, the pre-FEC BER will be excessively large and uncorrectable bit errors will be generated. The OSNR  threshold in this case is called B2B OSNR tolerance.







Some mathematical aspects of OSNR:-



Calculating OSNR:

As can be seen from the definitions above, two quantities must be known to compute OSNR: the Total Signal Power, and the amount of ASE Noise Power present in a 0.1nm bandwidth.



Measuring the ASE power:

When the ASE noise floor is clearly visible left and right of the optical signal, the ASE Noise Power at the signal wavelength can be interpolated from two measurements made left and right of the signal.



Alternately, when the noise floor is not visible left and right, the optical signal needs to be removed temporarily in order to allow the measurement of the ASE Noise Power at the signal wavelength.

This is the case when some filtering devices implemented somewhere in line are removing some of the noise between channels (Example = WSS).

This could also be the case if the modulated signal bandwidth is so large so that the tail of adjacent signals overlaps the open space between them – masking the noise floor.





Note that power values are frequently provided in dBm by the OSA - whether the measurements is made using integrated power function or a user-specified resolution bandwidth.  To convert the values in dBm to mW, the following relation must be used:





Measuring the Total Signal Power:

When making this measurement it is important to use a bandwidth that is large enough to capture the entire signal:

If using an OSA with variable resolution bandwidth, this means that the resolution bandwidth has to be set larger than the width of the signal.

If using a integrated- power function between vertical markers, the markers have to be set to include the entire signal bandwidth.



Note that when measuring a DWDM spectrum, the power of each DWDM signal cannot be measured independent of ASE noise present in the measurement bandwidth.

 Ie., the value that is actually measured is: Total Signal Power + ASE Noise Power.

To get the Total Signal Power only, the ASE noise content (measured separately in the previous step) must be subtracted from the measurement. Since the measurement bandwidth used to measure the noise on its own (ASE BW) may be different from the bandwidth used to measure the signal (Signal BW), a factor is added to the equation.  This removes the correct amount of noise from the measurement.



where:

Signal BW is the bandwidth used to measured the signal,

ASE BW is the bandwidth used to measure the ASE Noise Power only (e.g., 0.1nm).



Calculating OSNR from measurements:

Since OSNR must be reported as signal power with respect to 0.1nm worth of ASE noise, the denominator of the OSNR equation also includes a factor.  This adjusts the amount of ASE noise measured to an amount expected inside a 0.1nm bandwidth:



Thus



In a transmission chain, the relative evolution of the optical signal and noise levels is usually characterized by the optical signal-to-noise ratio (OSNR). The OSNR, in a given optical bandwidth, is defined as





The optical signal may be polarized, but the noise is usually not and, depending on the receiver polarization sensitivity, the noise must be considered with a single or two polarizations. Any active (or passive) linear optical device amplifies (or attenuates) simultaneously the incoming signal and the incoming noise





Accordingly with the fluctuation dissipation theorem, it also adds noise, making its output OSNR lower than its input one. This OSNR degradation is expressed in terms of noise factor (NF) defined as:







where G is the optical power gain (or the attenuation coefficient) of the device which is larger (or smaller) than 1. NF is denoted noise figure when it is expressed in dB. Because the relative importance of the added noise strongly depends on the input noise level, NF is only an intrinsic parameter of the optical device (i.e. independent of the input signal and noise) when an input reference noise is defined.

For polarization insensitive devices, input noise and output noise usually do depend on polarization, making noise figure independent of polarization considerations.



Single amplifier noise factor

OSNR at the output of an optical amplifier with an output power Pout and for an optical bandwidth B0 is expressed as:



where m=1 or 2 is the number of polarization modes contributing to noise. It is usual to consider the two polarization modes (m=2) of the noise and to make reference to an optical bandwidth equal to 0.1 nm corresponding to Bo = 12.5GHz at a wavelength of 1550 nm. In this particular situation, the OSNR is expressed in dB as:







Noise factor of a cascade of fibers and amplifiers

Let us consider now the cascade of spans displayed in Figure 3.8 and including NAMP11 optical fiber spans with an attenuation coefficient A5expð2αALÞ and NAMP lumped linear phase insensitive amplifiers with a gain net G and a noise factor NF. For each span a near compensation of the signal attenuation by the gain is assumed, making its net gain GSPAN 5 GA close to 1. Each fiber reduces the sig- nal level and reduces the noise level nearly in the same way. Since the input noise level is far above the appropriated reference level, the attenuation noise of the fiber is negligible and the OSNR is kept nearly unchanged. Each amplifier output POUT restores the input noise of the link but adds the amplifier noise.





The accumulated noise is Namp times larger than single amplifier and we have:









To bridge transoceanic distances while keeping a high OSNR (optical SNR), it is crucial to limit the noise contribution added by the successive amplifiers. The impact of the added noise on the output OSNR can be calculated with:





This equation can also be expressed in a more physical manner:



where N is the amplifier count, and Δλ the width of the filter where the OSNR is expressed. The number “30” at the end of Equation corresponds to the conversion of signal input power from units in watts into units scaled in milliwatts.









Note: Now try to utilise the above concepts and equations whatever way you want .









Go Back

Calculating Channel Capacity for DWDM links

The maximum data rate (maximum channel capacity) that can be transmitted error-free over a communications channel with a specified bandwidth and noise can be determined by the Shannon theorem. This is a theoretical maximum data transmission rate for all possible multilevel and multiphase encoding techniques.

As can be seen below that the maximum rate depends only on channel bandwidth and the ratio between signal power to noise power. There is no dependence on modulation method.

Rmax =Bolog2(OSNR+1)

where

    Rmax = maximum data rate for the channel (also known as channel capacity), Gbps

    Bo = optical channel passband, GHz

    OSNR = channel optical signal to noise ratio

Example:-

For a 62 GHz channel passband (for standard 200 GHz DWDM channel spacing) and an OSNR of 126 (21 dB) the maximum possible channel capacity is 433 Gbps.

As channel bandwidth decreases so does maximum transmission rate. For a 30 GHz channel passband (100 GHz DWDM channel spacing) and OSNR of 126 (21 dB) the maximum possible channel capacity is 216 Gbps.







Go Back

Calculating Transponder bandwidth

Transponder bandwidth is the product of Modulation , Baud Rate and the Polarisation.

BW=Modulation x Baud x Polarisation

Following table will give an idea for various bit rates:-



Ex:

Modulation = 2 (bits/s/Hz)

Baud Rate = 32G

Polarisation= 2



BW= 2 x 32 x 2 =128Gbps





Link

Go Back

BER and Q relation

The Bit Error Rate (BER) of a digital optical receiver indicates the probability of an incorrect bit identification. In other words, the BER is the ratio of bits received in error to the total number of bits received. Below lists different values for BER and their corresponding errors per bits and over time.

As we know that, the photocurrent is converted to a voltage then measured. The measurement procedure involves a decision as to whether the bit received is a 1 or a 0. The BER is a not only a function of the noise in the receiver and distortion in the system, but also on the decision level voltage,VD that is the threshold level above which the signal is classified as a 1 and below which the signal is classified as a 0. Even an ideal signal with no noise nor distortions has a non-zero BER if the decision level is set too high or too low. For example, if VD is set above the voltage of the 1 bit, the BER is 0.5, assuming equal probability of receiving a one and a zero.

BER

Error per 10E-15 bits

@ 10Gbps, One error in

1x10-6

10,00,00,000

0.1 msec

1x10-9

1,00,000

0.1 sec

1x10-12

100

1.7 min

1x10-15

1

1.2 days



Mathematically, the Bit Error Rate is expressed as


BER = p(1)P(0 1) + p(0)P(1 0)

where p(1) and p(0) are the probabilities of receiving a 1 and a 0, respectively. P(0/1) is the probability of deciding a 0 when the bit is actually a 1, and P(1/0) is the probability of deciding a 1 when the bit is a 0.

Minimum BER as a function of Q





Go Back

A short discussion on 980nm and 1480nm pump based Erbium Doped Fiber Amplifiers (EDFA)

 Introduction

The 980nm pump needs three energy level for radiation while 1480nm pumps can excite the ions directly to the metastable level .



(a) Energy level scheme of ground and first two excited states of Er ions in a silica matrix. The sublevel splitting and the lengths of arrows representing absorption and emission transitions are not drawn to scale. In the case of the 4 I11/2 state, s is the lifetime for nonradiative decay to the I13/2 first excited state and ssp is the spontaneous lifetime of the 4 I13/2 first excited state. (b) Absorption coefficient, a, and emission coefficient, g*, spectra for a typical aluminum co-doped EDF.

.The most important feature of the level scheme is that the transition energy between the I15/2 ground state and the I13/2 first excited state corresponds to photon wavelengths (approximately 1530 to 1560 nm) for which the attenuation in silica fibers is lowest. Amplification is achieved by creating an inversion by pumping atoms into the first excited state, typically using either 980 nm or 1480 nm diode lasers. Because of the superior noise figure they provide and their superior wall plug efficiency, most EDFAs are built using 980 nm pump diodes. 1480 nm pump diodes are still often used in L-band EDFAs although here, too, 980 nm pumps are becoming more widely used.



Though pumping with 1480 nm is used and has an optical power conversion efficiency which is higher than that for 980 nm pumping, the latter is preferred because of the following advantages it has over 1480 nm pumping.

  • It provides a wider separation between the laser wavelength and pump wavelength.
  • 980 nm pumping gives less noise than 1480nm.
  • Unlike 1480 nm pumping, 980 nm pumping cannot stimulate back transition to the ground state.
  • 980 nm pumping also gives a higher signal gain, the maximum gain coefficient being 11 dB/mW against 6.3 dB/mW for the 1.48
  • The reason for better performance of 980 nm pumping over the 1.48 m pumping is related to the fact that the former has a narrower absorption spectrum.
  • The inversion factor almost becomes 1 in case of 980 nm pumping whereas for 1480 nm pumping the best one gets is about 1.6.
  • Quantum mechanics puts a lower limit of 3 dB to the optical noise figure at high optical gain. 980 nm pimping provides a value of 3.1 dB, close to the quantum limit whereas 1.48  pumping gives a value of 4.2 dB.
  • 1480nm pump needs more electrical power compare to 980nm.



Application

The 980 nm pumps EDFA’s are widely used in terrestrial systems while 1480nm pumps are used as Remote Optically Pumped Amplifiers (ROPA) in subsea links where it is difficult to put amplifiers.For submarine systems, remote pumping can be used in order not to have to electrically feed the amplifiers and remove electronic parts.Nowadays ,this is used in pumping up to 200km.

The erbium-doped fiber can be activated by a pump wavelength of 980 or 1480 nm but only the second one is used in repeaterless systems due to the lower fiber loss at 1.48 mm with respect to the loss at 0.98 mm. This allows the distance between the terminal and the remote amplifier to be increased.

In a typical configuration, the ROPA is comprised of a simple short length of erbium doped fiber in the transmission line placed a few tens of kilometers before a shore terminal or a conventional in-line EDFA. The remote EDF is backward pumped by a 1480 nm laser, from the terminal or in-line EDFA, thus providing signal gain



Vendors

Following are the vendors that manufactures 980nm and 1480nm EDFAs



Go Back

Techniques/technologies to mitigate compensation in long haul submarine optical networks

Map of transmission impairments in long-haul submarine systems and some techniques/technologies for their mitigation or compensation.







source:https://www.elsevier.com/books/undersea-fiber-communication-systems/chesnoy/978-0-12-804269-4

Go Back

Spectral Hole Burning (SHB) phenomenon in Optical Networks

Spectral Hole Burning (SHB)

Spectral hole burning (SHB) is a major limitation of amplified WDM systems with high channel count. The main reason lies in the fact that there is no possibility of compensating for this effect.

  • Due to the inhomogeneous portion of the linewidth broadening of the dopant ions, the gain spectrum has an inhomogeneous component and gain saturation occurs, to a small extent, in an inhomogeneous manner. This effect is known as spectral hole burning because a high power signal at one wavelength can 'burn' a hole in the gain for wavelengths close to that signal by saturation of the inhomogeneously broadened ions. Spectral holes vary in width depending on the characteristics of the optical fiber in question and the power of the burning signal, but are typically less than 1 nm at the short wavelength end of the C-band, and a few nm at the long wavelength end of the C-band. The depth of the holes are very small, though, making it difficult to observe in practice.



  • In addition, accurate predictions are very difficult to carry out. SHB acts as a selective oversaturation of specific erbium ion classes due to a precise matching of the signal wavelength with their corresponding Stark energy sublevels. Gain contributions of a given ion class to the overall amplifier gain spectrum will be dependent on the specific values of energy of the related Stark sublevel (determined by inhomogeneities in the local electric field in the glass as opposed to on the crystal) and of their population density (i.e. of the related induced saturation). Clearly, the overall gain spectrum of the amplifier may be distorted due to this SHB effect. The best-known induced distortion is the hole induced in the gain spectrum in the spectral vicinity of a saturated channel.
  • This gives rise to a hole in the gain profile around the saturating channel wavelength, whose width is determined by temperature. Increasing temperature will increase this homogeneous broadening (and thus the hole width at the expense of its depth) while lower temperatures will reduce and make this hole deeper in the gain profile. . Since it is not possible to operate the amplifier at a lower temperature where the effect of homogeneous broadening vanishes, the system designer should account for the holes induced by each signal channel in the amplifier gain profile at room temperature



  • SHB does not distort the overall gain profile because the sum of the different contributions has a flat transfer function. Problems may be encountered when some channel powers increase compared to other channels
  • SHB could be seen (wrongly) at first glance as a regulating effect because the most favored channels will see a slightly lower gain due to the SHB they induce. This will indeed slightly reduces the power excursion between channels (the correcting effect being, however, much lower than the effect creating this SHB). The detrimental effect actually comes from the distortions induced in the amplifier gain spectrum due to thermal broadening. Other channels, located a few nanometers aside from the most favored ones will also see an induced reduced gain level, while such channels may not be gain favored like the channels that create the SHB effect. This will result in a decrease in the OSNR of such neighboring channels
  • The SHB effect not only stresses the dynamic range of the system by increasing the burst power but it also degrades the OSNR performance. In particular, whilst the power change is limited to the beginning of the burst (during the formation of the hole), the OSNR impairment is observed at the end of burst,where the spectral holeis already completely formed by the burst.

SHB also has a limiting effect in the implementation of preemphasis of the less-favored channels. This technique consists of increasing the power of the worst channels at the transmitter side, at the expense of the best channels, leading to the same OSNR for all channels at the link output. This can be performed while keeping the EDFA output powers constant and decreasing the transmitted power of the best channels. However, the highest predistortion that can be performed at the link input in order to compensate for a given excursion in output OSNR is limited by SHB.





REF::Undersea Fiber Communication Systems by Jose Chesnoy

Go Back

Difference between EDFAs requirements for Terrestrial(Land) Systems and Submarine Systems.

Compared with requirements for EDFAs for terrestrial applications and for Submarine applications, there are major important differences making the two types of amplifiers definitely two different components.



Terrestrial(Land) systemSubmarine System

•Reliability of land-based equipment is somewhat relaxed, corresponding to a 15-year required lifetime.

• Submarine systems are designed for a 25-year lifetime and a minimum of ship repair that imply reliability and redundancy of all the critical components.

• Terrestrial equipment should enable operation over a wide temperature range of −5, +70°C (and −40, +85°C in storage conditions).









  This wide temperature range makes it necessary to implement cooling means for the           highest temperatures and compensation means for temperature-sensitive devices.

• In submarine amplifiers, heat is dissipated from the outer side of the repeater container into the sea. Such a container is designed in order to make the heat go through the box from the pump device to the outer side, ensuring moderate temperature in all points. Temperature of the deep sea is indeed around +5°C. Specific care is taken for repeaters located at the coast or in shallow water, in order to guarantee no pump failure while avoiding Peltier cooling.

For reliability reasons, no glue is used on the optical path. The constant temperature of the devices and the doped fiber incorporated in the amplifier makes it possible to perfectly tailor the gain spectrum of the submerged EDFAs, owing to very accurate equalizing filters and to concatenating hundreds of amplifiers.

This would not be possible for land-based amplifiers whose gain cannot be guaranteed below 1 dB for a 30-nm bandwidth partly due to such temperature changes (while a few tenths of dB of gain excursion is reached for submarine amplifiers).

• The infrastructure itself of terrestrial systems determines the actual characteristics of the amplifier that needs to cope with important variations of the span loss between two amplifier sites. In addition, for economical reasons, the amplifiers cannot be tailored to cope with this nonuniform link.

• In submarine systems, the link is manufactured at the same time as the amplifiers and much attention is paid to guarantee constant attenuation loss between amplifier values, while the amplifier has been designed to perfectly adapt to the link characteristics.



• There are high gain range (20 to 35 dB) of the amplifiers incorporated in land-based systems and allowed by the margins given on the OSNR due to the reduced total link length.

Gain equalizers therefore compensate for much larger gain excursion values than in submarine amplifiers and should therefore be located at amplifier midstage in order not to impact their equalizing loss on the amplifier output power.

• On the contrary, such filters can be placed after the single section of doped fiber that composes the amplifier in the case of submarine applications.









Go Back

Temperature dependency of EDFA Gain for various channels

Here the results are after evaluating the effect of a thermal variation on the output tilt. In this particular set-up the amplifier is kept at room temperature (25 °C) and only the active fiber spool undergo a thermal cycle. Temperature of the EDFA is varied from 0 °C to 65 °C and the amplifier gain is measured at four point : 0, 25, 40 and 65 °C.





As can be seen a 65 °C temperature variation implies a 1.8 dB tilt variation. Considering a reduced temperature range (5-45 °C) the output tilt variation is about 1.1 dB.

It was  tried to investigate the origin of the temperature dependency. First  used a different EDFA with a lower erbium concentration (14 dB/m erbium peak absorption); then tried to reduce the saturation of the EDFA using lower power levels, but in both cases the output tilt variation was very similar to that of Figure .

Temperature variation has also effect on the EDFA efficiency: with high temperature the active fiber is less efficient than at low temperature.

With constant pumps power, a 65°C variation implies a 0.25 dB difference on the output power. To compensate this extra tilt we can act in two way: using the VOA ; heating the EDFA to a constant 65 °C.

First solution requires a thermal sensor to measure the EDFA temperature and a compensation table (stored in the firmware) to act on VOA attenuation.

Second solution requires a heater and special mechanics & software to store the EDFA spool and to keep their temperature constant.



Go Back

Simplifying what and why of Raman Amplifier.



It's always a wondering situation when we discuss Raman Amplifier;its benefits , requirement and application.I have tried to make it simpler to understand here.

Hope it will help the readers.



Introduction

  • The Raman amplifier is typically much more costly and has less gain than an Erbium Doped Fiber Amplifier (EDFA) amplifier. Therefore it is used only for speciality applications.
  • The main advantage that this amplifier has over the EDFA is that it generates very less noise and hence does not degrade span Optical to Signal Noise Ratio (OSNR) as much as the EDFA.
  • Its typical application is in EDFA spans where additional gain is required but the OSNR limit has been reached.
  • Adding a Raman amplifier might not significantly affect OSNR, but can provide up to a 20dB signal gain.
  • Another key attribute is the potential to amplify any fiber band, not just the C band as is the case for the EDFA. This allows for Raman amplifiers to boost signals in O, E, and S bands (for Coarse Wavelength Division Multiplexing (CWDM) amplification application).
  • The amplifier works on the principle of Stimulated Raman Scattering (SRS), which is a nonlinear effect.
  • It consists of a high-power pump laser and fiber coupler (optical circulator).
  • The amplification medium is the span fiber in a Distributed Type Raman Amplifier (DRA).
  • Dstributed Feedback (DFB) laser is a narrow spectral bandwith which is used as a safety mechanism for Raman Card. DFB sends pulse to check any back reflection that exists in the length of fiber. If no High Back Reflection (HBR) is found, Raman starts to transmit.
  • Generally HBR is checked in initial few kilometers of fibers to first 20 Km. If HBR is detected, Raman will not work. Some fiber activity is needed after you find the problem area via OTDR.

Common type of Raman amplifier

  • The lumped or discrete type Raman amplifier internally contains a sufficiently long spool of fiber where the signal amplification occurs.
  • The DRA pump laser is connected to the fiber span in either a counter pump (reverse pump) or a co-pump (forward pump) or configuration.
  • The counter pump configuration is typically preferred since it does not result in excessively high signal powers at the beginning of the fiber span, which can result in nonlinear distortions,

  •  The advantage of the co-pump configurations is that it produces less noise.

Principle

As the pump laser photons propagate in the fiber, they collide and are absorbed by fiber molecules or atoms. This excites the molecules or atoms to higher energy levels. The higher energy levels are not stable states so they quickly decay to lower intermediate energy levels releasing energy as photons in any direction at lower frequencies. This is known as spontaneous Raman scattering or Stokes scattering and contributes to noise in the fiber.

Since the molecules decay to an intermediate energy vibration level, the change in energy is less than the initial received energy during molecule excitation. This change in energy from excited level to intermediate level determines the photon frequency since Δ f = Δ E / h . This is referred to as the Stokes frequency shift and determines the Raman gain versus frequency curve shape and location. The remaining energy from the intermediate level to ground level is dissipated as molecular vibrations (phonons) in the fiber. Since there exists a wide range of higher energy levels, the gain curve has a broad spectral width of approximately 30 THz.

During stimulated Raman scattering, signal photons co-propagate frequency gain curve spectrum, and acquire energy from the Stokes wave, resulting in signal amplification.

Theory of Raman Gain

The Raman gain curve’s FWHM width is about 6 THz (48 nm) with a peak at about 13.2 THz below the pump frequency. This is the useful signal amplification spectrum. Therefore, to amplify a signal in the 1550 nm range the pump laser frequency is required to be 13.2 THz below the signal frequency at about 1452 nm.

Multiple pump lasers with side-by-side gain curves are used to widen the total Raman gain curve.

where fp = pump frequency, THz  fs = signal frequency, THz Δ f v = Raman Stokes frequency shift, THz

Raman gain is the net signal gain distributed over the fiber’s effective length.It is a function of pump laser power, fiber effective length, and fiber area.





For fibers with a small effective area, such as in dispersion compensation fiber, Raman gain is higher. Gain is also dependent on the signal separation from the laser pump wavelength,Raman signal gain is also specified and field measured as on/off gain. This is defined as the ratio of the output signal power with the pump laser on and off.In most cases the Raman ASE noise has little effect on the measured signal value with the pump laser on. However, if there is considerable noise, which can be experienced when the measurement spectral width is large, then the noise power measured with the signal off  is subtracted from the pump on signal power to obtain an accurate on/off gain value.The Raman on/off gain is often referred to as the Raman gain.

In addition, to obtain significant gain, pump power used in distributed Raman amplification is much higher than signal power. Therefore, the pump energy transferred in the process of stimulated emission remains low compared to the involved pump power level in the case of practical distributed Raman amplification. This makes the Raman gain weakly dependent on the total signal power, or on the channel count. This is an advantage in terms of practical implementation, but also requires a perfect control of the pump power. Backward pumping is therefore usually used to average the effects of pump instabilities and its relative intensity noise (RIN).

It is worth pointing out that Raman gain (expressed in dB) that is produced is a linear function of the pump power. This is because there is almost no gain saturation induced by signal power in distributed preamplification, making the amplification process operate as in the small-signal input power regime. This is quite different compared to EDFAs, which are operated in saturation for having high output power. Their output power is then a linear function of the pump power, making their gain, expressed in dB, a logarithmic function of the pump power.

Noise sources

Noise created in a DRA span consists :-

  • Amplified spontaneous emissions (ASE)
  • Double Rayleigh scattering (DRS)
  • Pump laser noise.

ASE noise is due to photon generation by spontaneous Raman scattering.

DRS noise occurs when twice reflected signal power due to Rayleigh scattering is amplified and interferes with the original signal as crosstalk noise.

The strongest reflections occur from connectors and bad splices.

Typically DRS noise is less than ASE noise, but for multiple Raman spans it can add up. To reduce this interference, ultra polish connectors (UPC) or angle polish (APC) connectors can be used. Optical isolators can be installed after the laser diodes to reduce reflections into the laser. Also span OTDR traces can help locate high-reflective events for repair.

Counter pump DRA configuration results in better OSNR performance for signal gains of 15 dB and greater. Pump laser noise is less of a concern because it usually is quite low with RIN of better than 160 dB/Hz.

Nonlinear Kerr effects can also contribute to noise due to the high laser pump power. For fibers with low DRS noise, the Raman noise figure due to ASE is much better than the EDFA noise figure. Typically the Raman noise figure is –2 to 0 dB, which is about 6 dB better than the EDFA noise figure.

Raman amplifier noise factor is defined as the OSNR at the input of the amplifier to the OSNR at the output of the amplifier.

Noise figure is the dB version of noise factor

The DRA noise and signal gain is distributed over the span fiber’s effective length.



Counter pump distributed Raman amplifiers are often combined with EDFA pre-amps to extend span distances. This hybrid configuration can provide 6 dB improvement in the OSNR, which can significantly extend span lengths or increase span loss budget. Counter pump DRA can also help reduce nonlinear effects by allowing for channel launch power reduction.



  Functional Block Diagram for CoPropagating and Counter Propagating Raman Amplifier



                       Co-Propagating                                                                                                                                                Counter-Propagating



Field Deployment architecture of EDFA and RAMAN Amplifiers



Interesting to know





Reference:-

  1. Planning Fiber Optic Networks by Bob Chomycz
  2. https://www.cisco.com/c/en/us/products/collateral/optical-networking/ons-15454-series-multiservice-provisioning-platforms/data_sheet_c78-658538.html



Go Back

Animated map shows the undersea cables that power the internet



Link

Go Back

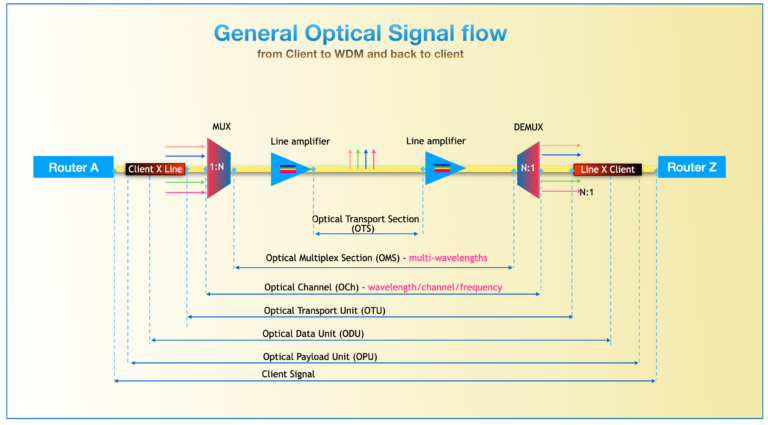

How Layer 0(zero) is so efficient with "Latency" -One of the key parameter for Operator.

Layer 0(zero) merely introduces any latency to the network.



  • It's mostly the electronics that imparts latency in the network.
  • The more we play with bit streams/signals ;more will be the latency.
  • Most of the latency optimization happens in layer 1-3.

Future Transport Network Requirements:


Go Back

Optical Fiber Link Design requirements

The optical link design essentially is putting the various optical components, which we discussed earlier, so that information can be transmitted satisfactorily. The satisfactoriness of the transmission can be defined in terms of some characteristic parameters.

 The user generally specifies the distance over which the information is to be sent and the data rate to be transmitted. The Designer then has to find the specification of the system components.

The designer generally has to define some additional criteria either as per the standards or as per the user specifications.

  The Design criteria are given in the following.

Primary Design Criteria

  • Data Rate
  • Link length

Additional Design Parameters

  • Modulation format eg Analog/digital
    • Depends upon the type of signals user want to transmit. For example if it is a TV signal, then may be analog transmission is more suited as it requires less bandwidth and better linearity. On the other hand if data or sampled voice is to be transmitted, digital format may be more appropriate.
    • The digital signals have to be further coded to suite the transmission medium and for error correction.
  • System fidelity: BER, SNR
    • The system fidelity defines the correctness of the data received at the receiver.
    •  For digital transmission it is measured by the Bit Error Ratio (BER) . The BER is defined as:-
    • In optical system, the BER has to be less than 10E-9
    • For analog system, the quality parameter is the Signal-to-noise (SNR) ratio. In addition, there is a parameter called the inter-modulation distortion, which describes the linearity of the system.
  • Cost : Components, installation, maintenance
    • Cost is one of the important issues of the link design.
    • The cost has three components, components, installation and maintenance.
    • The component and the installations cost are the initial costs. Generally, the installation cost is much higher than the component cost for long links. This is especially true for laying the optical cable. It is therefore appropriate to lay the cables keeping in view the future needs.
    • The optical link is suppose is supposed to work for at least 25years. The maintenance costs are as important as the initial cost. An initial cheaper system might end up into higher expenses in maintenance and therefore turn out to be more expensive as a whole.
  •   Upgradeability
    • The optical fiber technology is changing very rapidly and the data rates are increasing steadily.
    • The system should be able to adopt new technology, as well should be able to accommodate higher data rates with least possible changes.
  •   Commercial availability
    • Depending upon which part of the world one is, the availability of the components and the systems may be an issue.

ref:http://nptel.ac.in/courses/117101054/16

Go Back

20 Blog Posts
