Dear Friends,

Sometime we require something that help us to understand SDH in quick mode.For this I have collected some snapshots that will help you crack your interviews as well as make you loaded with the know hows of the same..

1.SDH frame:-

All about SDH:A pictorial perspective - Image 1

2.Mapping structure:-

All about SDH:A pictorial perspective - Image 2

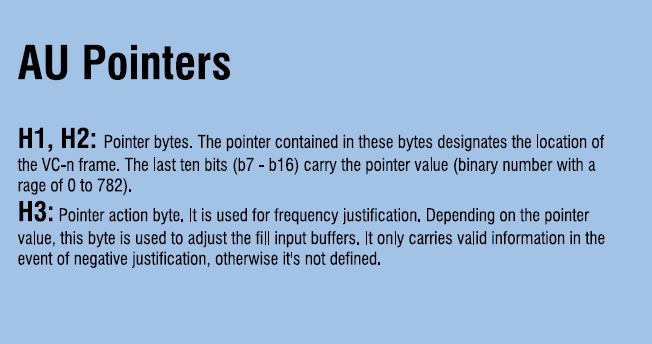

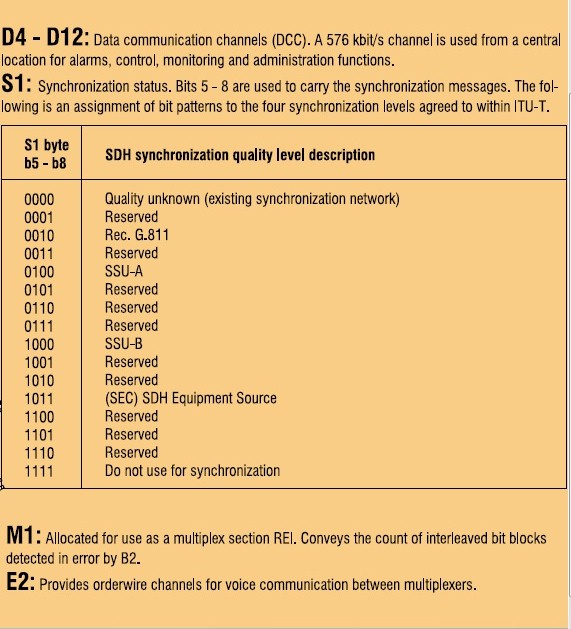

3.Overheads:-

All about SDH:A pictorial perspective - Image 3

All about SDH:A pictorial perspective - Image 4

All about SDH:A pictorial perspective - Image 5

All about SDH:A pictorial perspective - Image 6

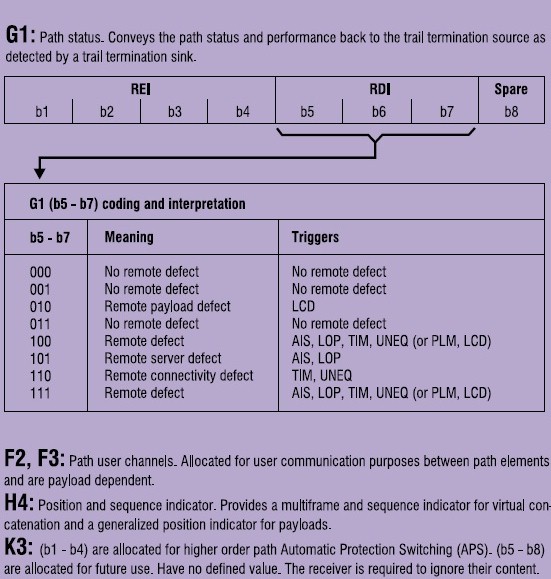

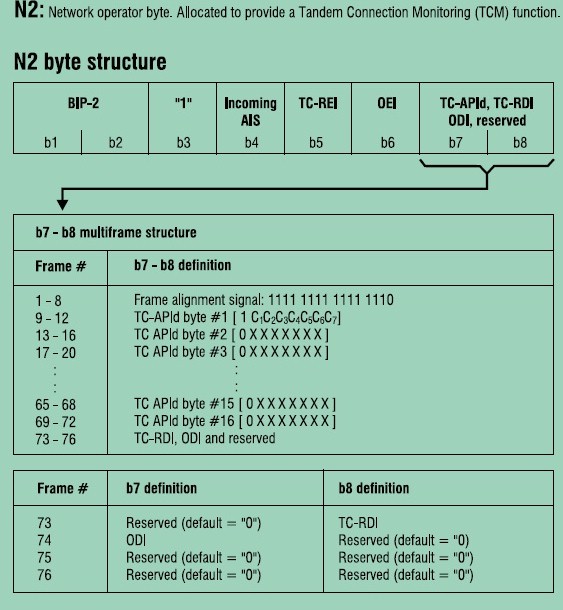

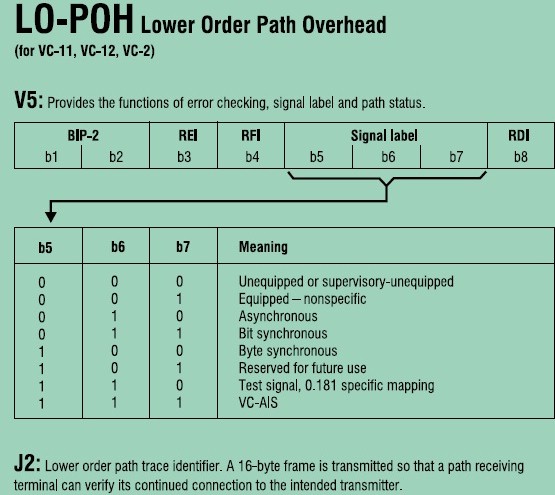

4.Path Overheads:-

All about SDH:A pictorial perspective - Image 7

All about SDH:A pictorial perspective - Image 8

All about SDH:A pictorial perspective - Image 9

All about SDH:A pictorial perspective - Image 10

All about SDH:A pictorial perspective - Image 11

All about SDH:A pictorial perspective - Image 12

5.Concatenation:-

All about SDH:A pictorial perspective - Image 13

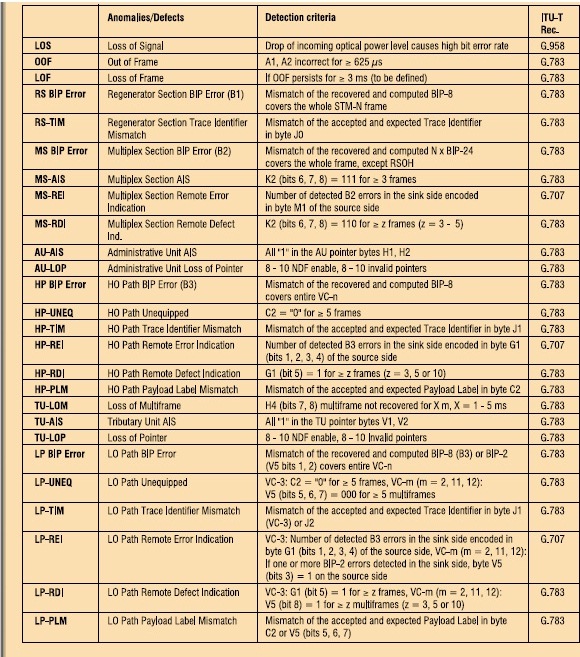

6.Alarms:-

All about SDH:A pictorial perspective - Image 14

7.Alarm Flow:-

All about SDH:A pictorial perspective - Image 15

Your concerns and queries will be highly appreciated……….
